No Ramp^™ Utility Tilt Trailers

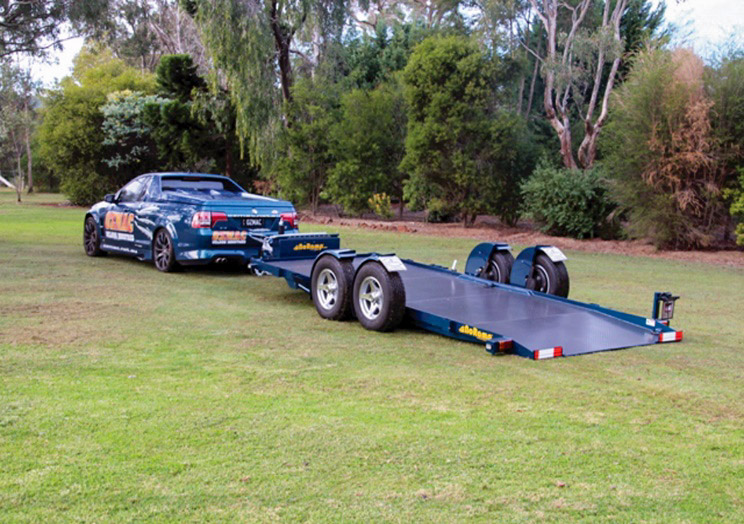

No Ramp^™ Utility Tilt Trailer

Introducing ‘No Ramp’, the most versatile and innovative utility tilt trailer in the industry. The ‘No Ramp’ Tilt Trailer’s 4° load angle completely eliminates the need for ramps when loading and unloading. ‘No Ramp’ Tilt Trailers are built for rugged Australian conditions.

Ozmac are the exclusive, Australia-wide ‘No Ramp’ Trailer dealers.

Trailer Applications:
Each ‘No Ramp’ trailer is tailored to a variety of applications:

• Agriculture Equipment,
• Bob Cats,
• Construction Equipment,
• Fork Lifts,
• Golf Carts,
• Industrial Cleaning Equipment,
• Motorbikes,
• Mowers,
• Scissor Lifts,
• Vintage & Prestige Vehicles.

Trailer Models:
‘No Ramp’ tilt trailers are available as models: A300, A350, and A450.
Here are their specific details:

A300 ‘No Ramp’ Trailer

Model specifications^*

• ATM 3000 kg,
• Payload 2000 kg,
• Single Axle,
• Deck 3.860 m × 1.525 m,
• Overall length 5.1 m.

A350 ‘No Ramp’ Trailer

Model specifications^*

• ATM 3500 kg,
• Payload 2300 kg,
• Tandem Axle,
• Deck 5.2 m × 1.93 m,
• Overall length 6.6 m.

A450 ‘No Ramp’ Trailer

Model specifications^*

• ATM 4500 kg,
• Payload 3200 kg,
• Tandem Axle,
• Deck 5.2 m × 1.93 m,
• Overall length 6.6 m.

* Specifications subject to change without notice.

‘No Ramp’ Tilt Trailer Standard Features:

• Patented and patent pending NoRamp tilt trailer system
• 4° load angle
• Load trailer with or without tow vehicle attached
• Manual tongue jack
• Large systems box with locking SS latch
• Locking Mechanism
• LED Lights
• Hydraulic pump and cylinders
• Group 31 deep cycle battery
• Stake pocket rub rail
• Torsion suspension
• 6 Stud 215/80 R16 and 215/80 R15 load rated tyres
• Electric Brakes (All axles)
• Safety chains
• Protected wire harness

‘No Ramp’ Tilt Trailer Popular Options:

• Steel mesh deck,
• Aluminium wheels,
• Remote control key fob,
• D-Rings,
• Winch plate,
• Side rails,
• Pintle hook on A450,
• Ball Coupling on A300,

Trailers are sandblasted and painted in two-pack paint which can be matched to your required colours.

[Will confirm correct terminology from our certification with NEVDIS]

If you want the ultimate in a quality, durable, convenient ‘No Ramp’ trailer - Don’t risk an inferior product - Contact Ozmac Welding Industries today on 07 4634 4833 or via our Contact Us page.
